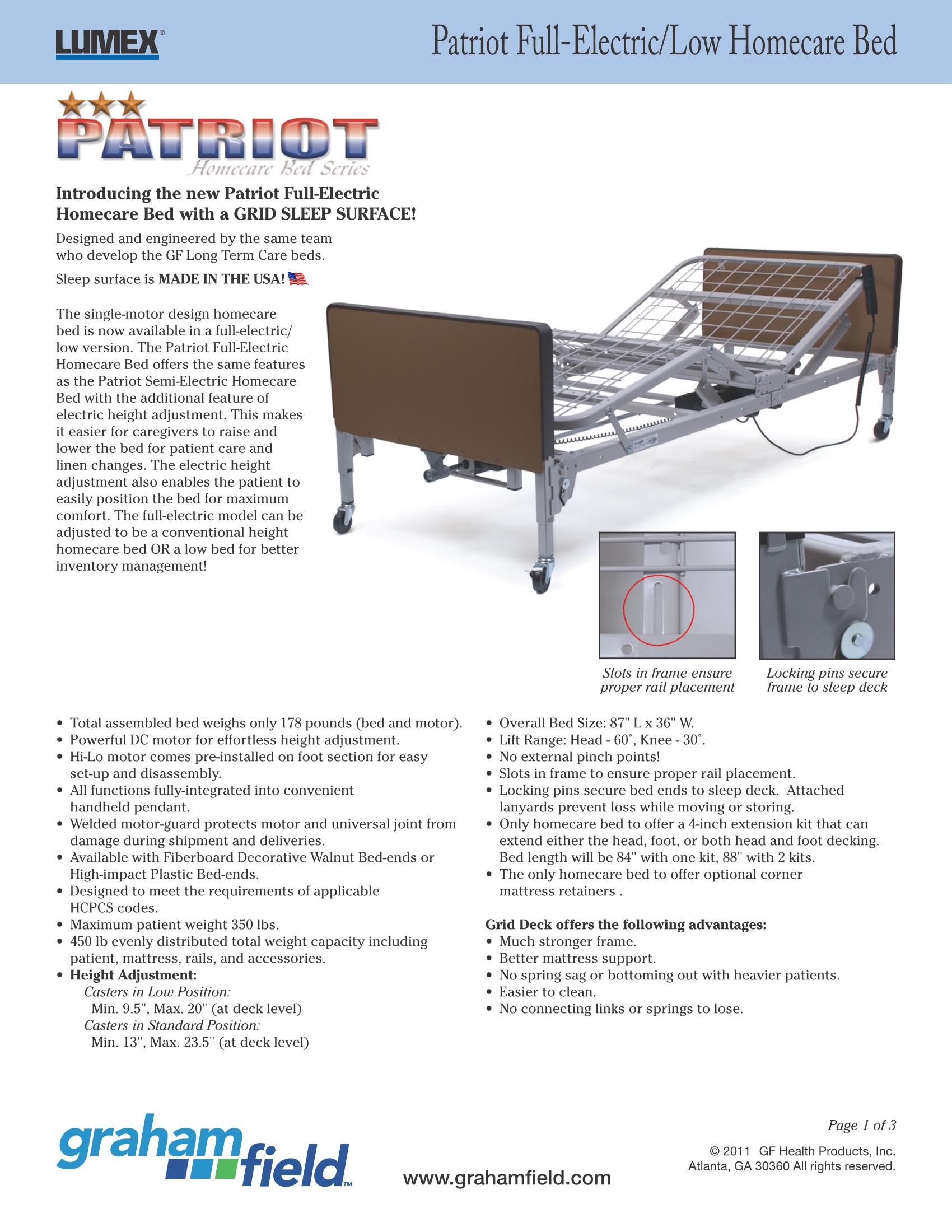

Introducing the new Patriot Full-Electric Homecare Bed with a grid sleep
surface!
Designed and engineered by the same team who develop the GF Long Term Care beds.
Sleep surface isMADE
IN THE USA!
The single-motor design homecare bed is now available in a full-electric/low
version. The Patriot Full-Electric Homecare Bed offers the same features as the
Patriot Semi-Electric Homecare Bed with the additional feature of electric
height adjustment. This makes it easier for caregivers to raise and lower the
bed for patient care and linen changes. The electric height adjustment also
enables the patient to easily position the bed for maximum comfort. The Full
electric model can be adjusted to be a conventional height homecare bed OR a low
bed for better inventory management!
Total
assembled bed weighs only 178 pounds (bed and motor).
Powerful DC
motor for effortless height adjustment.
Hi-Lo motor
comes pre-installed on foot section for easy
set-up and
disassembly.
All functions
fully-integrated into convenient
handheld
pendant.
Welded
motor-guard protects motor and universal joint from damage during shipment
and deliveries.
Available
with Fiberboard Decorative Walnut Bed-ends or High-impact Plastic Bed-ends.
Designed to
meet the requirements of applicable HCPCS codes.
Maximum
patient weight 350 lbs.
450 lb evenly
distributed total weight capacity including patient, mattress, rails, and
accessories.
Height
Adjustment:
Casters in Low Position:
Min. 9.5", Max. 20" (at deck level) Casters in Standard Position:
Min. 13", Max. 23.5" (at deck level)
Overall Bed
Size: 87" L x 36" W.
Lift Range:
Head - 60°, Knee - 30°.
No external
pinch points!

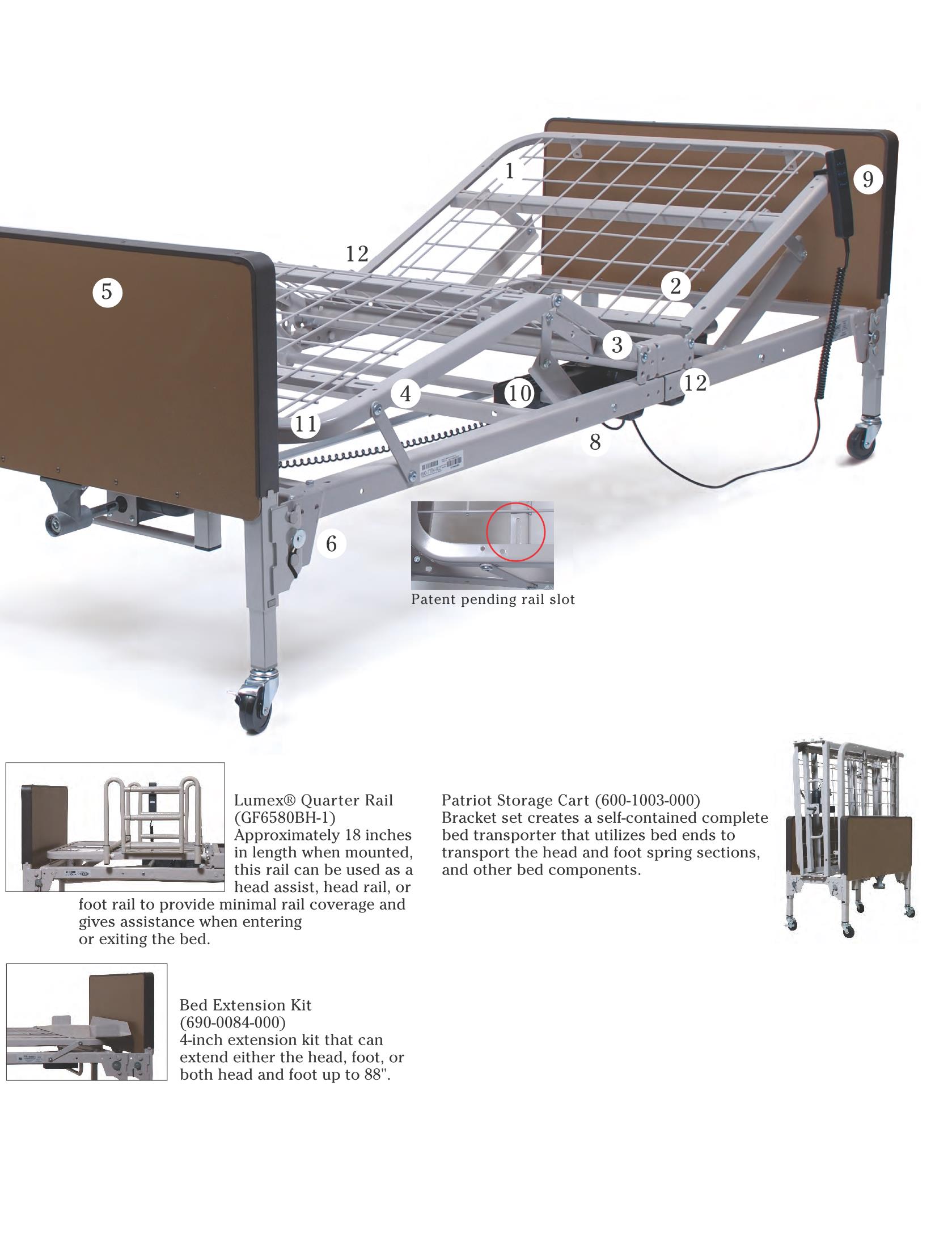

Slots in
frame to ensure proper rail placement.
Locking pins
secure bed ends to sleep deck. Attached lanyards prevent loss while moving
or storing.
Only homecare
bed to offer a 4-inch extension kit that can extend either the head, foot,
or both head and foot decking. Bed length will be 84" with one kit, 88"
with 2 kits.
The only
homecare bed to offer optional corner mattress retainers.

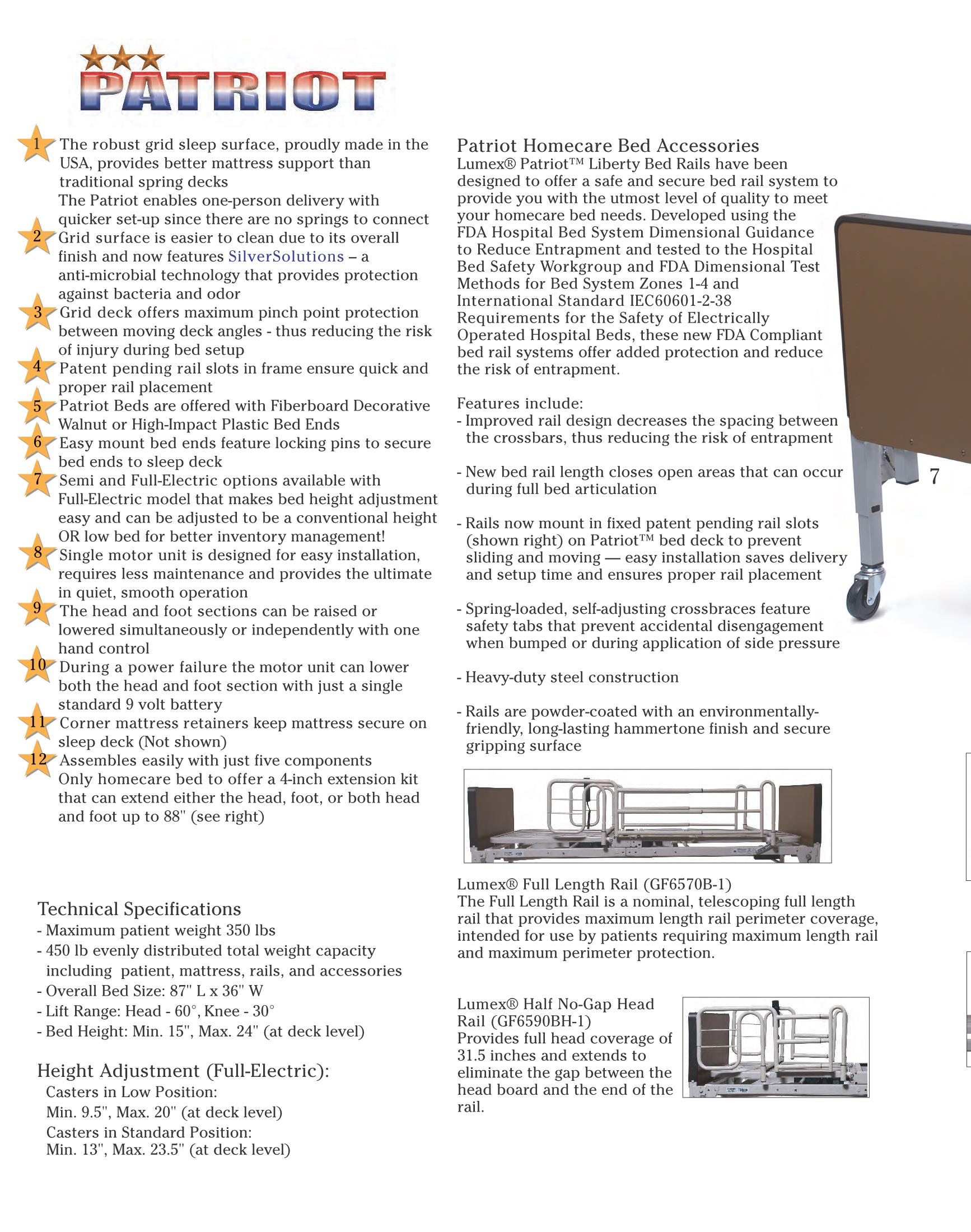

Grid Deck offers the following advantages:
Much stronger
frame.
Better
mattress support.
No spring sag
or bottoming out with heavier patients.
